Fully foldable EAZZY series of bike racks offer convenient mounting, user-friendly functions and compact storage.
Frame attachment is on the down-frame behind the front wheel. Some bikes with large diameter down tube will not fit this carrier.
- Available in 1, 2, 3 and 4 bike versions.
- Supplied fully assembled except for the lights.
- Easy, convenient, secure and very stable
- The conic clamp fits all ISO 50 mm tow balls. (Does not fit to adaptable or 'Multi Ball' System).
- Locks the rack to the tow ball.
- Easy to tilt for tail door access.
- Well balanced during the tilting phase.
- Tilts with bikes on.
- Padded rotating cradles with ratchet strap
- Wheel holders with quick release ratchet straps and rim padding. Fits up to 4"
- Locking cable included.

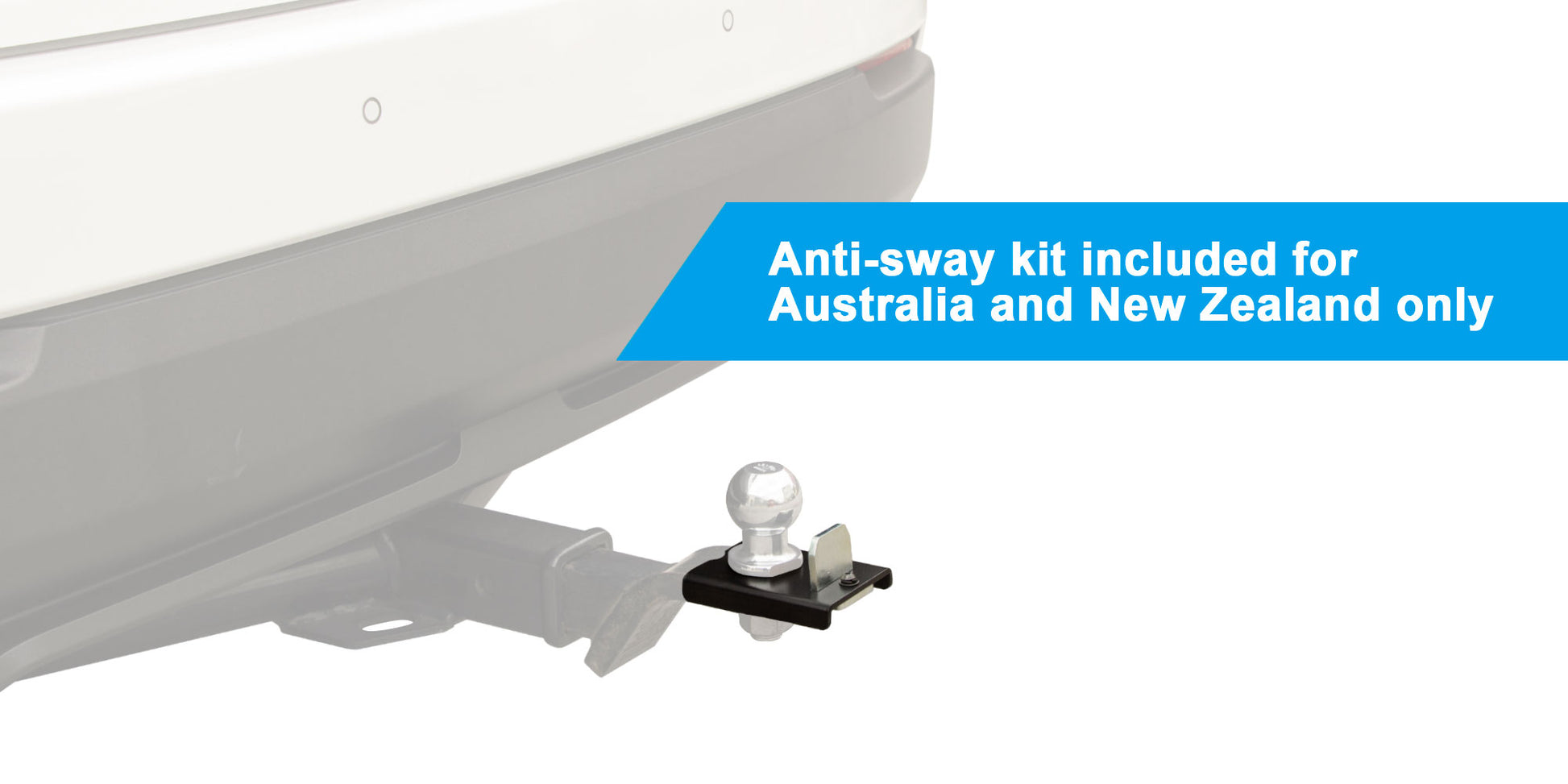

- Anti sway plate included
NEW Model great looking and easy to use!
Max number of bikes: 2
Max weight per bike: 20kg
Max load capacity: 40kg
Fits all ISO 50mm tow balls: not multi ball systems
Dimensions (width x depth x height): 117 x 57.5 x 70 cm
(measured from the centre of the tow ball mount to the outside edge of the number plate holder).
Lighting board plug type: 7 pin FLAT
Bike carrier to tow ball lock
Bike carrier to bike lock
The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
Requires 65mm clearance from centre of tow ball to rear of vehicle.
